Company Name | OHIZUMI MFG. CO., LTD. |
---|---|
Location | Sayama, Saitama, JAPAN |
Established | August, 1939 |
Capital (3/31/2022) |
1,080 Million Yen (8M USD) |
Net Sales (3/31/2022) |
11,882 Million Yen (88M USD) |
Number of Employees | 193 |
Ohizumi, a specialized manufacturer of thermistors with a long history, provides high quality and long-life bare chip products all over the world based on many years R&D experience of superior ceramics and optimized electrode technologies.

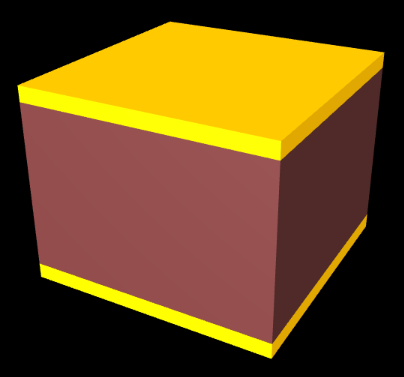

Thermistor image
Parts No. | Resistance | B-Value | Dimension (mm) | |||||
---|---|---|---|---|---|---|---|---|
R25 | R40 | Tolerance | B25/85 | Tolerance | W | L | T | |
NBC2103*393F | 10KΩ | - | ※ | 3930K | +/- 1% | 0.32 | 0.32 | 0.22 |
NBC103*393F | 10KΩ | - | ※ | 3930K | +/- 1% | 0.34 | 0.34 | 0.25 |
NBC103*344F | 10KΩ | - | ※ | 3435K | +/- 1% | 0.46 | 0.46 | 0.21 |
NBC103*400F | 10KΩ | - | ※ | 4000K | +/- 1% | 0.64 | 0.64 | 0.23 |
NBC193*397F | - | 10KΩ | ※ | 3975K | +/- 1% | 0.57 | 0.57 | 0.21 |
NBC104*420F | 100KΩ | - | ※ | 4200K | +/- 1% | 0.32 | 0.32 | 0.21 |
NBC4103H407F | 10KΩ | - | 3% | 4070K | +/- 1% | 0.21 | 0.21 | 0.20 Max |
※ Resistance Tolerance : F +/- 1%、G +/- 2%、H +/- 3%
NBC4103H407F is under development

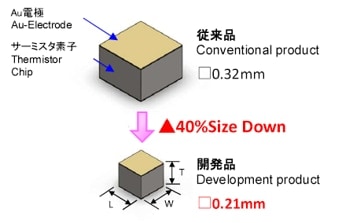

Developing □0.21mm thermistor which is 40% smaller than conventional product. We have succeeded to achieve miniaturization while maintaining our feature of‘Change in resistance value over time is extremely small.’
