Roll Press / Roll Laminator
- High accuracy press
- Top-selling press in Japan
- 2 demonstration lines permanently available
Features
-
Roll centering accuracy within 1/1000 mm
⇒Maintains quality in the material flow direction -
Roll bending correction equipment comes as standard (roll deflection correction)
⇒Maintains quality in the material crosswise direction

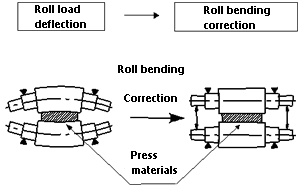

Roll bending correction equipment

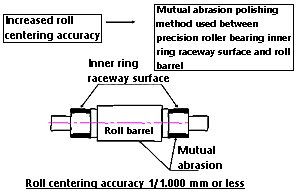

Roll centering accuracy
Uses
- Lithium ion battery materials
- Nickel–metal hydride battery materials
- Materials used in flexible printed circuit boards
- Various types of plastic film
- Various types of high temperature/high pressure molding materials, and more
Test devices are permanently available (sample testing possible)
- Temperature specification: Room temperature to max.°C
- Quantity: Reels off up to 3 sheets
- Effective handling width: Up to max. 550 mm
