Life Sciences
In many life-science fields, electron microscopy has contributed in a large number of ways, including the discovery of viruses, prevention of infection, clarification of the structure of organelles, drug development, and food safety. It is utilized in a wide variety of fields, such as molecular and cellular biology, microbiology, botany, clinical pathology, pharmacology, and toxicology. It is also used to investigate cell structures and their functions, the ultrastructure of biomolecules and proteins, and three-dimensional structures. Hitachi High-Tech provides highly advanced tools for life-science applications, such as TEM systems that can be used with ultra-thin sections to investigate the internal structure of cells, and SEM and FIB-SEM systems for three-dimensional structural observations.
Products
Ultra-high Resolution Scanning Electron Microscope
SU9000
SU9000 is the top-of-the-line SEM equipped with cold FE electron source and in-lens objective lens with least aberration, and achieves the world's highest SE resolution of 0.4nm. In addition to high resolution STEM with 0.34nm resolution, EELS and diffraction that are usually considered difficult for SEM can also be supported.
Ultrahigh-Resolution Schottky Scanning Electron Microscope

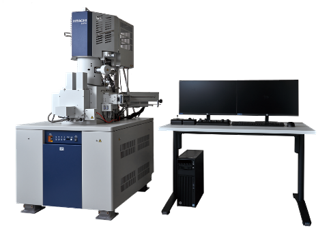

SU8700
The SU8700 brings in a new era of ultrahigh-resolution Schottky field emission scanning electron microscopes to the long-standing Hitachi EM line-up. This revolutionary FE-SEM platform incorporates multifaceted imaging, high-probe current, automation, efficient workflows for users of all experience levels, and more.

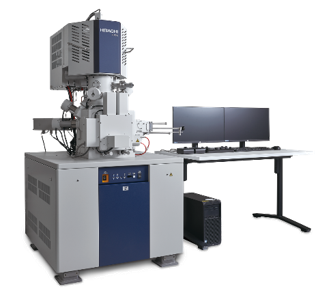

Ultrahigh-Resolution Scanning Electron Microscope SU8600
The SU8600 brings in a new era of ultrahigh-resolution cold-field emission scanning electron microscopes to the long-standing Hitachi EM line-up. This revolutionary CFE-SEM platform incorporates multifaceted imaging, automation, increased system stability, efficient workflows for users of all experience levels, and more.
Ultra-High-Resolution Schottky Scanning Electron Microscope

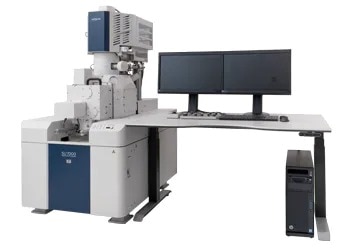

SU7000
The SU7000 is designed to allow simultaneous acquisition of multiple secondary and backscattered electron signals, and enables rapid capture of many types of signals. With the ability to display and store up to 6 signal channels simultaneously, the SU7000 offers unsurpassed imaging performance. In addition, it provides a flexible of specimen chamber and vacuum system to support the broad range of observational conditions. Moreover, the electron gun—with its built-in Schottky emitter—can provide irradiating beam currents of up to 200 nA. The SU7000 is built to accommodate the full diversification of future analytical methods.

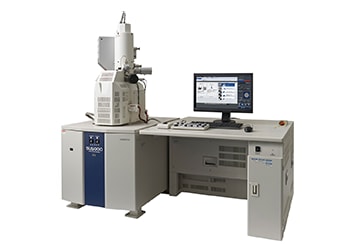

Schottky Field Emission Scanning Electron Microscope SU5000
SU5000 combines Schottky emission electron source and out-lens objective lens for high resolution imaging and diverse analyses of samples with various sizes and compositions. Its drawer type stage allows applications with special stages such as heating, tensile, and so on. Unique user interface, EM Wizard supports best SEM experience of every user.
SU3900SE/SE Plus SU3800SE/SE Plus
The SU3900SE/SU3800SE Series Microscopes are FE-SEMs that offer high-resolution observation capabilities. They combine easy data acquisition through simple operation with much larger and heavier specimens than existing FE-SEMs. This makes it possible to observe large and heavy specimens including industrial materials such as iron and steel, automotive parts, and aerospace-related parts.
Scanning Electron Microscopes SU3800 / SU3900
Hitachi High-Tech's scanning electron microscopes SU3800/SU3900 deliver both operability and expandability. The operator can automate many operations and efficiently utilize their high performance. The SU3900 is equipped with a large multipurpose specimen chamber to accommodate observation of large samples.
Scanning Electron Microscope FlexSEM 1000 / FlexSEM 1000 II
FlexSEM 1000 employs thermionic electron source and achieves resolution of 4.0nm with its compact design ready for desktop setup. Low vacuum mode allows rapid observation of insufficiently conductive samples without metal coating to prevent charging. Optional Ultra Variable pressure Detector (UVD) enhance surface imaging capability of samples under low vacuum environment.

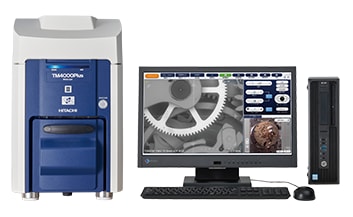

Tabletop Microscopes TM4000Ⅱ / TM4000PlusⅡ
Newly released TM4000 II series provide 20kV accelerating voltage and also allow wide area of SEM observation by adding Multi Zigzag function (Option) Tabletop Micro scope offers further enhanced observation and analysis application world.
Transmission Electron Microscope

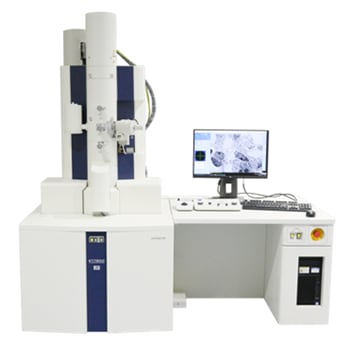

HT7800 Series
HT7800 series are 120kV digital TEM with enhanced operability. High-resolution screen camera and Image Navigation function ensure comfortable digital operation in a lighted environment. HT7800 offers wide-area, high-contrast imaging while HT7830 realizes best-in-class resolution.
Real-time 3D analytical FIB-SEM

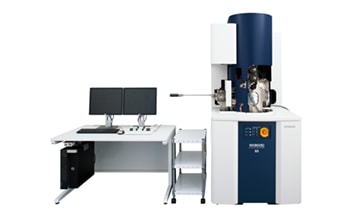

NX9000
SEM column and FIB column are orthogonally arranged to optimize column layout for 3D structural analysis. FE electron source and its unique detection geometry enable high resolution SEM imaging at beam coincident point. 3D-EDS and 3D-EBSD can be performed without moving the stage. Employing micro-sampling and triple beam system, high quality samples can be prepared for TEM and atom probe.
Focused Ion and Electron Beam System

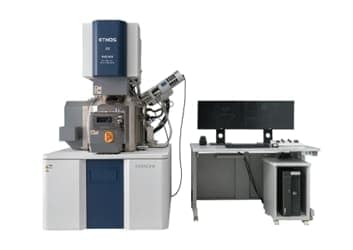

Ethos NX5000
The Hitachi Ethos FIB-SEM incorporates the latest-generation FE-SEM with superb beam brightness and stability. Ethos delivers high-resolution imaging at low voltages combined with ion optics for nanoscale precision processing.

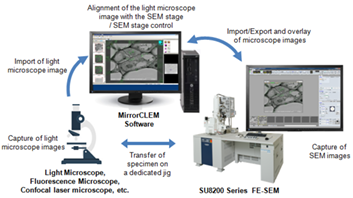

MirrorCLEM System for Correlative Light and Electron Microscopy
MirrorCLEM, a simple solution for correlative light and electron microscopy (CLEM).
