Nanoscale Device Characteristics Analysis System Nano-Prober NP8000

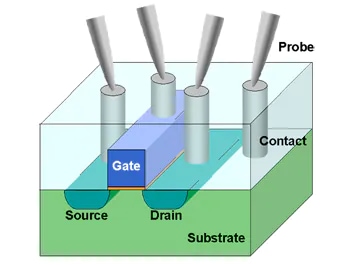

The Hitachi NP8000 is a SEM-based dedicated probing system designed to meet the analytical needs of 5 nm nodes and beyond. The system is capable of evaluating electrical characteristics, EBAC, EBIC, pulse IV, and the temperature requirements of nanoscale devices.
Overview
- New electron optics and new Schottky electron gun enable clear imaging using ultralow acceleration voltages of less than 100 V
- Improvement of EBAC image quality with high probe current
- 8 probe compatible
- Temperature-controlled stage for temperature-dependent characterization
- OM camera for both top-down and side views to assist coarse probing
- Sub-stage to allow samples to move independently from probes
- Probe exchange load-lock chamber

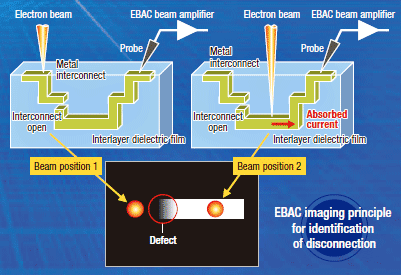

- EBAC (Electron Beam Absorbed Current) imaging function
- Improved voltage-applied EBAC function (dynamic-induced EBAC "DI-EBAC")
- Pulsed IV measurement for diagnosing resistive gate electronode defects (custom order)
Features

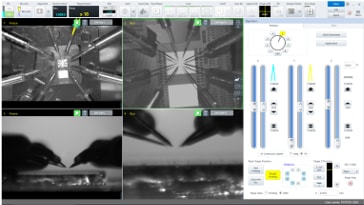

Integrated GUI for probe-position control and SEM imaging
Simultaneous display (top and side) ensures accurate positioning

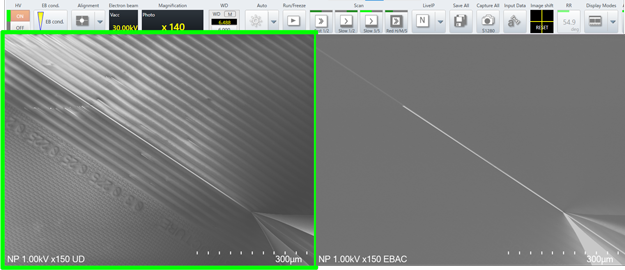

Simultaneous display of SEM and EBAC images
A method for faster defect detection

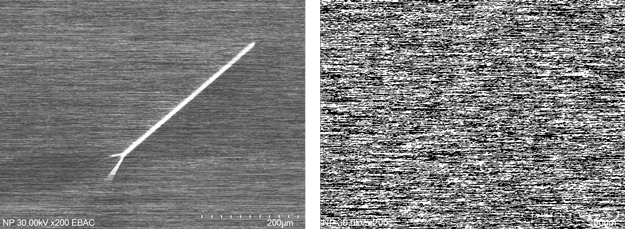

Low-resistance defects have historically been hard to image. The NP8000 is equiped with a new Schottky electron gun and improved voltage-applied EBAC amplifier that allows for easy imaging of these defects.
Improved imaging capability at low-accelerating voltages allows for lower accelerating voltages to be used which reduces specimen damage during observation.

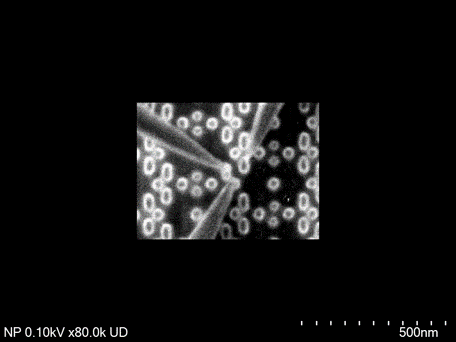

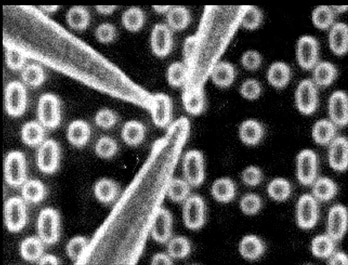

Accelerating voltage: 100 V
Magnification: 80,000 (Live image)
Specifications
Probe unit | Number of Probes | 8 |
---|---|---|
Stage Type | Piezoelectric | |
Fine stroke range | 5 µm (X,Y) | |
Coarse stroke range | 3 mm (X), 5 mm (Y) | |
Specimen stage / Base stage |
Specimen size | 15 mm x 15 mm or smaller (1 mm thick or less) |
Travel Range | Measurement / Specimen exchange / Probe exchange | |
Specimen / probe exchange |
Air-lock exchange chamber equipped | |
Probe navigation | Stage traverse to probe position Measurement position memory |
|
Probe coarse adjustment | ||
Probe coarse adjustment | OM image display | Top-down and side image displays |
Electron optics | Electron gun | Schottky emission electron source |
Accelerating voltage | 0.1 kV to 30 kV | |
Image shift | ±75 µm (at Vacc=1.0 kV, WD=5 mm) | |
EBAC amplifier / Image display |
Amplifier type | Current amplifier / Differential amplifier/DI-EBAC amplifier |
Image display | SEM / EBAC (Single / Parallel / Overlay) | |
Image processing | Black and white reversal display, color display, brightness adjustment, slow scan integration, belt scan |
