Silicon Drift Detectors (SDD)
Silicon Drift Detectors (SDD)
Technologically Advanced Silicon Drift Detector

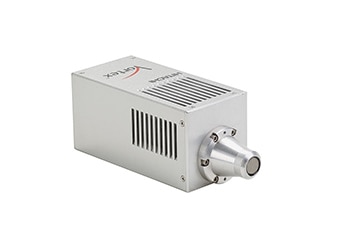

Vortex® Silicon Drift Detector
This detector features:
•No liquid Nitrogen (LN2)
•Very small loss in energy resolution and minimal peak shift with count rate
•Typically applied for X-ray fluorescence (XRF) spectroscopy
•Single active area (30-80 mm2) available of its kind

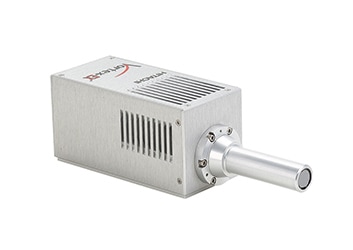

Vortex®-60EX Silicon Drift Detector
This detector features:
•No liquid Nitrogen (LN2)
•Very small loss in energy resolution and minimal peak shift with count rate
•Typically applied for X-ray fluorescence (XRF) spectroscopy
•Single active area (30-80 mm2) available of its kind
•Extended probe (50 mm)

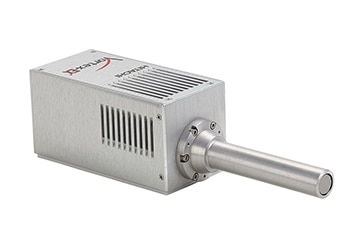

Vortex®-90EX Silicon Drift Detector
This detector features:
•No liquid Nitrogen (LN2)
•Very small loss in energy resolution and minimal peak shift with count rate
•Typically applied for X-ray fluorescence (XRF) spectroscopy
•Single active area (30-80 mm2) available of its kind
•Extended probe (60 mm)

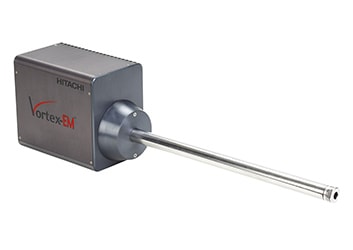

Vortex®-EM Silicon Drift Detector
Detector has features as follows:
•No liquid Nitrogen (LN2)
•Very small loss in energy resolution and minimal peak shift with count rate
•Typically applied for Synchrotron radiation applications
•Single active area (30-80 mm2) available of its kind
•Extended probe (300 mm)

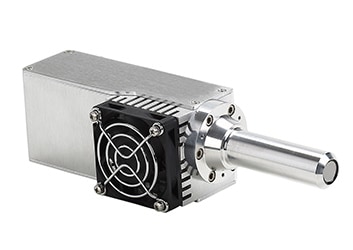

Vortex®-EZ Silicon Drift Detector
This detector features:
•No liquid Nitrogen (LN2)
•Very small loss in energy resolution and minimal peak shift with count rate
•Typically applied for X-ray fluorescence (XRF) spectroscopy
•Single active area (30-80 mm2) available of its kind

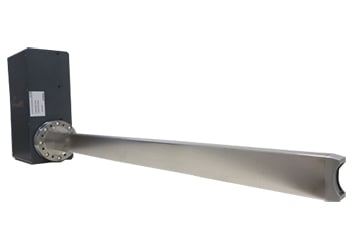

Vortex®-ME3 Silicon Drift Detector
This detector features:
•Large area, three-element silicon drift detector (90 mm² - 150 mm²)
•No liquid Nitrogen (LN2)
•Very small loss in energy resolution and minimal peak shift with count rate
•Typically applied for Synchrotron radiation applications
•Extended probe (300 mm - 600 mm)

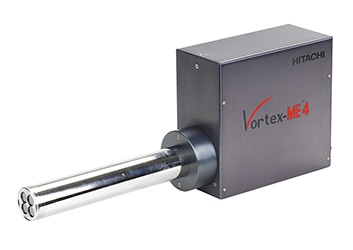

Vortex®-ME4 Silicon Drift Detector
Detector has features as follows:
•Large area, four-element silicon drift detector (total 120 mm2 - 200 mm2)
•No liquid Nitrogen (LN2)
•Very small loss in energy resolution and minimal peak shift with count rate
•Typically applied for Synchrotron radiation applications
•Extended probe (300 mm - 600 mm)

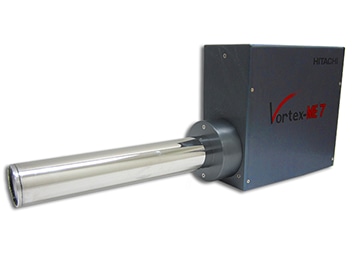

Vortex®-ME7 Silicon Drift Detector
Vortex®-ME7 SDD is a seven-element silicon drift detector (SDD) X-ray detection system with a total active area of 210 mm2 - 350 mm2 with a probe diameter of only 1.5” (38.1 mm). The Vortex®-ME7 offers superior energy resolution and high-throughput performance to enhance the total analytical performance of the X-ray spectrometry system.
