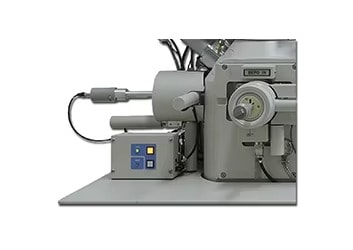

Micro-sampling System

Micro-sampling System

This device is used for preparing the desired wafer part for analysis with STEM, TEM, etc. by extracting a micro sample with an ion beam in the vacuum chamber of an FIB system.

Features

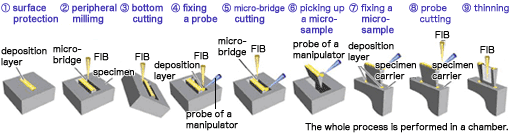

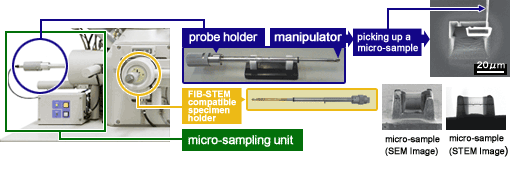

FIB micro-sampling unit and FIB micro-sampling method

-
-

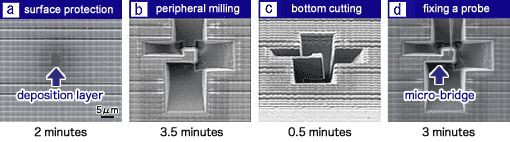

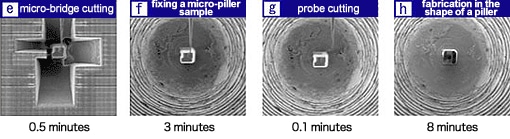

An example of FIB micro-piller sampling

A micro-pillar sample including an analysis point is directly cut out of semiconductor device. Micro-samples are cut out or trimmed in various shape by varying the incident FIB-direction.

-
-

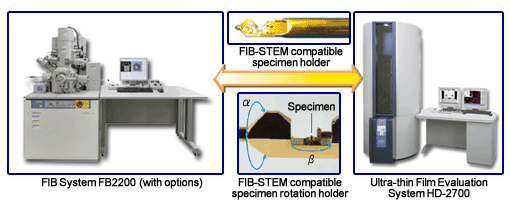

System configuration example

FIB-STEM System

A new-developed semiconductor device evaluation system consists of FB2200 FIB system and HD-2700 200 kV STEM. The system performs from searching defective points to analyzing structure in sub-nano meter scale within several hours.

-
FIB-TEM(STEM) compatible specimen holder

Observation case

An example of DRAM observation

SEM image of a micro-pillar specimen on the needle stub

-

Bright field STEM image of a micro-pillar specimen

-
