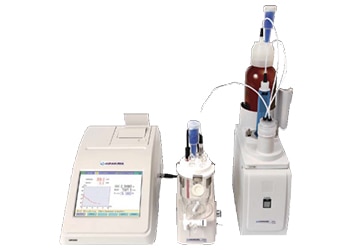

HIRANUMA Volumetric Karl Fishcer Titrator AQV-2200A
The AQV-2200A Karl Fischer Volumetric high-end titrator is the perfect choice for a very wide range from 10 ppm to 100 % water content with its maximum capability for automation and future up-gradability.
Features
Economical & Eco-friendly small-volume cell!
Small-volume titration cell requires only 20 mL of titration solvent for accurate measurements. Less reagent volume reduces waste and easy to replace with fresh solvent for the next measurement.
Two KF channels run in parallel!
Combining one additional KF station with either a volumetric or coulometric module enables two different measurements to be performed at the same time. With both a volumetric and coulometric channel, one can measure moisture over the entire range from a few ppm to 100 % or double your sample throughput with 2 identical KF stations.
Additional burets and buret-heads!
Compact additional burets and easy snap-on buret-heads are useful for quick KF reagent exchange or back titration applications.
Intuitive control panel display!
Current status, data and function keys are displayed on a colorful and large screen. All helpful and necessary information is always at hand!
Browse data by PC on a LAN connection!
Result data with curves can be viewed on your PC internet browsing program without optional software.
Enhanced memory data capacity!
Save & load parameters and results via USB flash memory.
Built-in thermal printer!
Easy paper loading. High resolution, clear printout.
Specifications
Item | Specifications |
---|---|
Titration method | Volumetric Karl Fischer Titration |
Multitasking function | Up to two KF titration stations (Double volumetric channels or combination of coulometric and volumetric channels) |
Detection method | AC polarization current detection/ potentiometric detection methods |
Background correction | Automatic correction (selectable ON/OFF) |
Measuring range | 0.1 mgH2O to 500 mgH2O (suitable for range: 10 ppm to 100 %) |
Display unit | mL(min.display:0.001 mL), mgH2O, %, ppm |
Titration cell capacity | Standard: 150 mL (min.usage: approx. 30 mL) Small: 75 mL (min. usage: approx. 20 mL) |
Memory data capacity | Internal memory: 100 data / channel USB flash memory (≥ 256 MB) : Max approx. 9900 data |
GLP compliant functions | Titration cell maintenance, Measurement accuracy test |
Calculation modes | 6 modes corresponding to sample status and sampling methods |
Printer | Built-in thermal printer (paper width: 58 mm) *Optional external printer: Dot impact printer PR-302B |
Touch panel screen | 7.5 inch color graphics LCD |
External input/output | RS-232C: 1 port, LAN: 1 port, USB flash memory stick: 1 port Interface for Evaporators: 1 port |
Power supply | AC100-240 V, 50/60 Hz, 100 V |
Dimensions / Weight | Main unit: 220(W) × 400(D) × 200(H) mm / Approx. 5 kg |
* KF reagents are not included.
Options
-
TQ-2200 Coulometric KF titration station
includes; Amp. unit, Stirrer K-2000A2 and Electrolytic cell complete -
TQV-2200 Volumetric KF titration station
includes; Amp. unit, Stirrer K-2000A2 and Titration cell complete -
Additional Buret
B-1700-20A (w/20 mL syringe) B-1700-10A (w/ 10mL syringe) - Evaporators
- Sampling devices
