LaChromUltra II C18
High durability and pressure resistance enable performance. The LachromUltra II C18 columns enable both ultrahigh-speed analysis and ultrahigh-resolution analysis.
The LaChromUltra II columns are packed with composed material comprised of organic-inorganic silica, providing improved physical and chemical durability over that of conventional silica gel particles.
To maximize the high-pressure performance inherent to UHPLC, a 250-mm-long column with 1.9-µm particles has been added to the product lineup.
Features
The physical and chemical durability of organic-inorganic silica is improved over that of conventional silica, acieving high-pressure tolerance. Based on the performance, a 250-mm-long column has been added to the product lineup.
The high-resolution columns with theoretical plate number 50,000 fully work in the application of relate- compound analysis, multicomponent analysis, and more.
Furthermore, by connecting 2 pieces of 250-mm columns, ultrahigh resolution can be achieved with theoretical plate number 100,000.

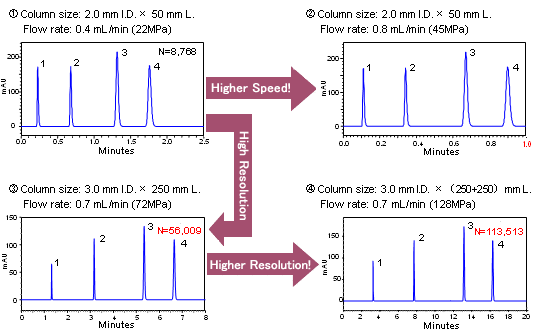

Example of application
Conditions:
| Mobile Phase | （1）（2）60％ CH3CN （3）（4）70％ CH3CN |
|---|---|
| Column Temperature | 40℃ |
| Detection | UV 270 nm |
| Injection Vol. | （1）（2）1 µL （3）（4）2 µL |
| Instrument |
sample:
- Uracil
- Methylbenzoate
- Naphthalene
- Buthylbenzoate
Ordering Information
UHPLC Columns HITACHI LaChromUltra II Series
| Product Name | Particle Size (µm) | Column Size (mm I.D. × mm L.) | P/N |
|---|---|---|---|
| LaChromUltra II C18（1.9 µm） Has the same properties as LaChrom II (3 µm,5 µm) but in different sizes. It is easy to interchange analysis methods between UHPLC and HPLC. |
1.9 | 2 ×50 | 889-0901 |
| 2 ×100 | 889-0902 | ||
| 2 ×150 | 889-0903 | ||
| 3 ×50 | 889-0904 | ||
| 3 ×100 | 889-0905 | ||
| 3 ×150 | 889-0906 | ||
| 3 ×250 | 889-0907 | ||
| 4.6 ×250 | 889-0908 |
HPLC Columns HITACHI LaChrom IISeries
| Product Name | Particle Size (µm) | Column Size (mm I.D. × mm L.) | P/N |
|---|---|---|---|
| LaChrom II C18 Has the same properties as LaChromUltra II (1.9 µm) but in different sizes. It is easy to interchange analysis methods between UHPLC and HPLC. |
3 | 4.6 ×100 | 889-0909 |
| 4.6 ×150 | 889-0910 | ||
| 5 | 4.6 ×150 | 889-0911 | |
| 4.6 ×250 | 889-0912 |
