TM Series Energy Dispersive X-Ray Spectrometers: AZtec Series
The AZtec series offers multiple EDS systems to choose from based on application and budget. High-performance detectors with an energy resolution of 129 eV (Mn-Ka) are available in all classes.
* :Example configuration of AZtec EDS in combination with a TM4000 Series SEM
*
:Detector: Built-in type
(Made by Oxford Instruments (UK))
Features
- Live Spectrum Viewer with Automatically labelled peaks can be shown.(AZtecLiveOneXplore)
- High-throughput analysis with high-precision pile-up correction function and TruQTM Technologies.
- TruMap generates element maps that peak overlaps removed in real time.
Line-up
- Standard：AZtecOneXplore
- LiveEDS function：AZtecLiveOneXplore
- Multi-featured analysis instrument：AZtecLiveLite
AZtecLiveOneXplore
Live EDS function

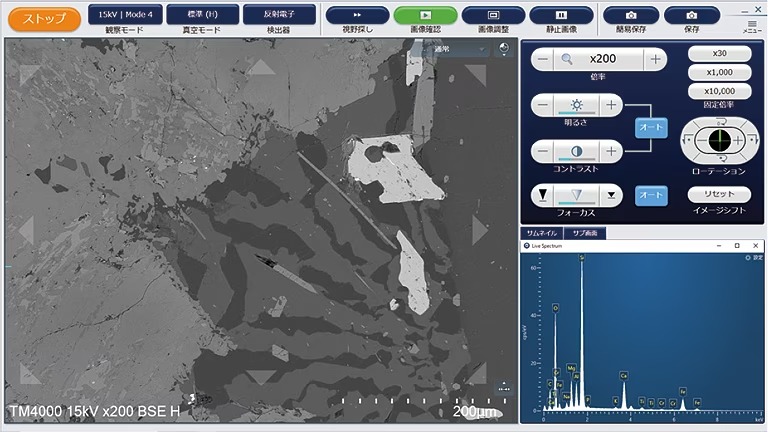

Live Spectrum View is available on the TM4000 User Interface to see the X-ray spectrum with Automatically labelled peaks. It allows you to confirm elemental information with secondary electron images and/or backscattered electron images, even while moving around your sample.
Live EDS spectrum

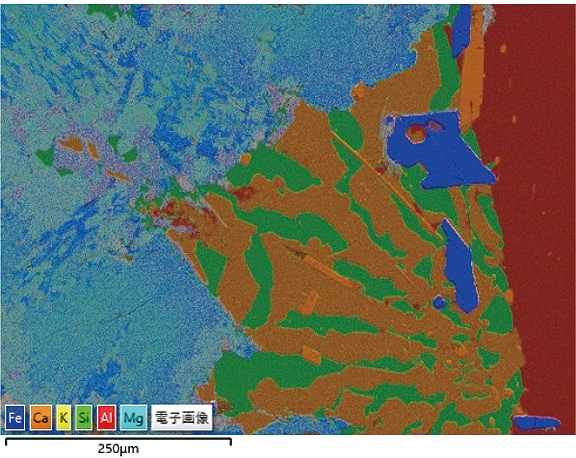

Mapping Image
TruMAP feature
High-precision and multifaceted TruMap function
- The TruMap feature allows multi-element spectra to be properly separated and background-subtracted in real time, resulting in a precise elemental mappimg with no image contamination from overlapping peaks.

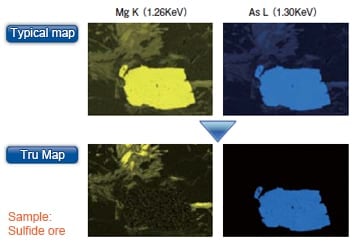

- In the example shown on the right, data from Mg-K and As-L, whose peaks overlap in typical maps, are clearly resolved and free from signal overlap with the TruMap function.
AZtecLiveOneXplore : Standard feature
AZtecOneXplore : Option
AZtecLiveLite
Advanced Analysis Functions
The AZtecEnergy system offers advanced analytical functionality and flexible configurations with the ability to automate analyses via a motorized stage, enabling wide-area mapping and particle analysis.
Large-area mapping

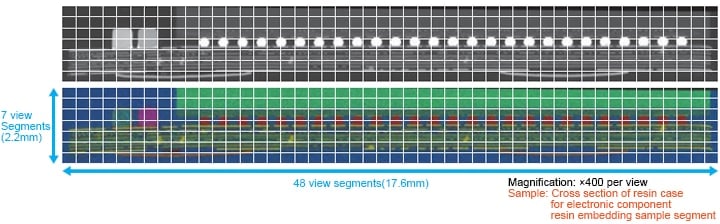

The Mapping software automatically acquires data for multiple specified regions to produce a single combined set of mapping information.
Specifications
Detectors
| AZtecOneXplore | AZtecLiveOneXplore | AZtecLiveLite | |
|---|---|---|---|
| Detector type | Silicon Drift Detector(SDD) | ||
| Detection area | 30 ㎜2 | ||
| Energy resolution | 151 eV(Cu-Ka) （equivalent to 129 eV with Mn-Ka） |
||
| Detection element | B5~U92 | ||
| TruMAP function | Optional | Standard | |
| LiveEDS function | - | Live Spectirum | Live Spectrum Live Mapping Live Image |
| Multi-featured analysis （Optional） |
- | - | AZtec Large AreaMapping AZtec Feature |
