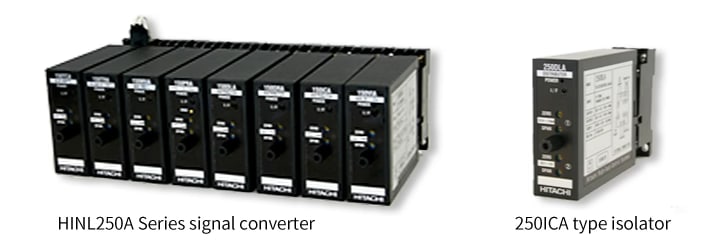

HINL150A/250A Series Signal Converters
The HINL150A / 250A Series signal converters come with standard functions such as burnout functions, square root extraction operation, and other functions while having a compact body with a width of 26mm (about half of the HINL200 series).
Features
- Electrical current with isolation, 2 output is possible (4 - 20mA DC × 2)
-
Can be installed by attaching
Spacer is not needed, high-density mounting is possible.
Lineup
| Model | Product name |
|---|---|
| 150TCA/250TCA | Thermocouple temperature converter |
| 150TRA/250TRA | Resistance temperature detector (RTD) temperature converter |
| 150MVA/250MVA | mV converter |
| 150PRA/250PRA | Potentiometer converter |
| 150DLA/250DLA | Distributor |
| 150DRA/250DRA | Distributor (with square root extractor) |
| 150ICA/250ICA | Isolator |
| 150VIA/250VIA | Voltage-current converter |
Specification
| Model | 150TCA | 150TRA | 150MVA | 150PRA |
|---|---|---|---|---|
| Input signal | JIS Standards Thermocouple R,K,E,J T,S,B,N |
JIS Standards Resistance temperature detectors (RTD) Pt100 |
mV,V,mA | Potentiometer 130-2000Ω |
| Output signal | Isolation 1 output: Output 1-5V DC or 4-20mA DC (please specify when ordering) | |||
| Allowable load resistance of output signal |
1-5V DC output: above 2kΩ 4-20mA DC output: below 750Ω |
|||
| Conversion accuracy | ±0.4%FS(Note 1) (More than 5mV span) |
Zero transition less than 50% ±0.25%FS (More than 50°C span) (Note 1) |
±0.2%FS(Note 1) | ±0.25%FS |
| Power supply voltage | 85-132V AC 50/60Hz or 24V DC (please specify when ordering) | |||
| Power consumption(VA) (at 100V AC drive) |
4.2 | 4.2 | 3.3 | 3.3 |
| Isolation | Interconnection present among Input - First Output - Second output - Power supply | |||
| Withstand voltage | Between the ground terminal and power supply terminal: 2000V AC, 1 minute Interconnection among Input / Output / Power supply: 2000V AC, 1 minute Interconnection among output: 1000V AC, 1 minute |
|||
| Insulation resistance | Between each terminal and ground terminal: 100MΩ / 500V DC | |||
| Structure | Flat-type plug-in structure (socket: Dedicated 11-pin socket, screw terminal M3) | |||
| Installation method | DIN rail or wall mounting compatible | |||
| Weight | Equipment: Approx. 150g Socket: Approx.30g | |||
| Function changeover switch | Transmitter power: can be changed by the ON / OFF (short metal fixture) | Transmitter power: can be changed by the ON / OFF (short metal fixture) | - | - |
Note 1 The accuracy changes depending on the range and the input specifications, please refer to the CS sheet.
| Model | 150DLA | 150DRA | 150ICA | 150VIA |
|---|---|---|---|---|
| Input signal | Two-wire system transmitter (nominal 24V DC) |
Output DC1-5V or 4-20mA DC (please specify when ordering) | Various voltage and current signals | |
| Output signal | Isolation 1 output: Output 1-5V DC or 4-20mA DC (please specify when ordering) | |||
| Allowable load resistance of output signal |
1-5V DC output: above 2kΩ 4-20mA DC output: below 750Ω |
|||
| Conversion accuracy | ±0.2%FS | ±0.3%FS (Output 0% and 10-100%)(Note 1) |
±0.2%FS | ±0.2%FS (More than 5mV span) Zero transition less than 50% |
| Power supply voltage | 85-132V AC 50/60Hz or 24V DC (please specify when ordering) | |||
| Power consumption(VA) (at 100V AC drive) |
3.7 | 3.7 | 2.8 | 2.8 |
| Isolation | Interconnection present among Input - First Output - Second output - Power supply | |||
| Withstand voltage | Between the ground terminal and power supply terminal: 2000V AC, 1 minute Interconnection among Input / Output / Power supply: 2000V AC, 1 minute |
|||
| Insulation resistance | Between each terminal and ground terminal: 100MΩ / 500V DC | |||
| Structure | Flat-type plug-in structure (socket: Dedicated 11-pin socket, screw terminal M3) | |||
| Installation method | DIN rail or wall mounting compatible | |||
| Weight | Equipment: Approx. 150g Socket: Approx.30g | |||
| Function changeover switch | Transmitter power : can be changed by the ON / OFF (short metal fixture) | Transmitter power : can be changed by the ON / OFF (short metal fixture) | - | - |
Note 1 The accuracy changes depending on the range and the input specifications, please refer to the CS sheet.
| Model | 250TCA | 250TRA | 250MVA | 250PRA |
|---|---|---|---|---|
| Input signal | JIS Standards Thermocouple R,K,E,J, T,S,B,N |
JIS Standards Resistance temperature detectors (RTD) Pt100 |
mV,V,mA | Potentiometer 130-2000Ω |
| Output signal | Isolation 2 output: Output 1-5V DC or 4-20mA DC (please specify when ordering) | |||
| Allowable load resistance of output signal |
1-5V DC output: above 2kΩ (First and second output have both the same specifications) 4-20mA DC output: below 750Ω (First output) below 350 (Second output) |
|||
| Conversion accuracy | ±0.4%FS(Note 1) (More than 5mV span) |
Zero transition less than 50% ±0.25%FS (More than 50°C span) (Note 1) |
±0.2%FS(Note 1) | ±0.25%FS |
| Power supply voltage | 85-132V AC 50/60Hz or 24V DC (please specify when ordering) | |||
| Power consumption(VA) (at 100V AC drive) |
3.3 | 3.3 | 3.3 | 3.4 |
| Isolation | Interconnection present among Input - First Output - Second output - Power supply | |||
| Withstand voltage | Between the ground terminal and power supply terminal: 2000V AC, 1 minute Interconnection among Input / Output / Power supply: 2000V AC, 1 minute Interconnection among output: 1000V AC, 1 minute |
|||
| Insulation resistance | Between each terminal and ground terminal: 100MΩ / 500V DC | |||
| Structure | Flat-type plug-in structure (socket: Dedicated 11-pin socket, screw terminal M3) | |||
| Installation method | DIN rail or wall mounting compatible | |||
| Weight | Equipment: Approx. 150g Socket: Approx.30g | |||
| Function changeover switch | - | - | - | - |
Note 1 The accuracy changes depending on the range and the input specifications, please refer to the CS sheet.
| Model | 250DLA | 250DRA | 250ICA | 250VIA |
|---|---|---|---|---|
| Input signal | JIS Standards Thermocouple R,K,E,J,T,S,B,N |
JIS Standards Resistance temperature detectors (RTD) Pt100 |
mV,V,mA | Potentiometer 130-2000Ω |
| Output signal | Isolation 2 output: Output 1-5V DC or 4-20mA DC (please specify when ordering) | |||
| Allowable load resistance of output signal |
1-5V DC output: above 2kΩ (First and second output have both the same specifications) 4-20mA DC output: below 750Ω (First output) below 350 (Second output) |
|||
| Conversion accuracy | ±0.2%FS | ±0.3%FS (Output 0% and 10-100%)(Note 1) |
±0.2%FS | ±0.2%FS (More than 5mV span) Zero transition less than 50% |
| Power supply voltage | 85-132V AC 50/60Hz or 24V DC (please specify when ordering) | |||
| Power consumption(VA) (at 100V AC drive) |
4.2 | 4.2 | 3.3 | 3.3 |
| Isolation | Interconnection present among Input - First Output - Second output - Power supply | |||
| Withstand voltage | Between the ground terminal and power supply terminal: 2000V AC, 1 minute Interconnection among Input / Output / Power supply: 2000V AC, 1 minute Interconnection among output: 1000V AC, 1 minute |
|||
| Insulation resistance | Between each terminal and ground terminal: 100MΩ / 500V DC | |||
| Structure | Flat-type plug-in structure (socket: Dedicated 11-pin socket, screw terminal M3) | |||
| Installation method | DIN rail or wall mounting compatible | |||
| Weight | Equipment: Approx.150g Socket: Approx.30g | |||
| Function changeover switch | Transmitter power : can be changed by the ON / OFF (short metal fixture) | Transmitter power : can be changed by the ON / OFF (short metal fixture) | - | - |
Note 1 The accuracy changes depending on the range and the input specifications, please refer to the CS sheet.
