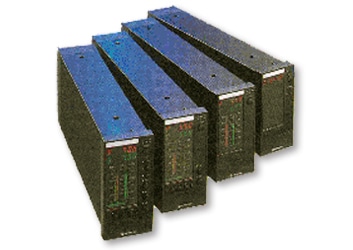

Unitrol ED Series
Has the reliable and compact design of the Unitrol E series.
Panel size is the international DIN size, and can be installed in a short panel depth, such as desk board.
Features
Series Models
- Programmable indicating controller (ECU100M)
- Fixed function indicating controller (ECU100S)
- Manual adjustment setter (EMU100)
- Indication alarm setter (EAU100)
- Integraph (ESU100)
Specifications
Model | ECU100M Indicator Controller | ECU100S Indicator Controller | EMU100Manual Controller |
---|---|---|---|
Functions | Programmable functions: Control Calculation 6 Types General Calculation 32 Types |
Fixed functions: Can be selected from 15 Types of Control Calculation Block |
Auto or Manual Controller Auto / Manual Mode Interchange: Front Switch Or with external switch With external maintenance function Preset output ready |
Input Signal | Analog Input: 1-5V DC 5 Point Digital Input: Non-Voltage Contact 4 Points |
Analog Input: 1-5V DC 3 Point Digital Input: Non-Voltage Contact 1 Points |
Analog Input: 1-5V DC 2 Point Digital Input: Non-Voltage Contact 3 Points |
Output Signal | Analog Output: 4-20mA DC or 1-5V 1 Point 1-5V DC 2 Point Digital Output: Semiconductor Relay Contact 3 Points |
Analog Output: 4-20mA DC or 1-5V 1 Point 1-5V DC 2 Point Digital Output: Semiconductor Relay Contact 3 Points |
Analog Output: 4-20mA DC or 1-5V 1 Point 1-5V DC 1 Point Digital Output: Semiconductor Relay Contact 3 Points |
Instruction・Display | LED Bar/Numerical Display | LED Bar/Numerical Display | LED Bar/Numerical Display |
Power Supply Voltage | 85-138V AC, 170-264V, 50/60Hz or 24V DC ±10% | ||
Power Consumption | 11VA(AC during usage) | 11VA(AC during usage) | 10VA(AC during usage) |
7.2W(DC during usage) | 7.2W(DC during usage) | 7.2W(DC during usage) | |
Insulated Resistance | Between each terminal and other contact:More than 100MΩ / 500V DC | ||
Installation method | Implanted dashboard panel type | ||
Weight | Approx. 3kg |
Model | EAU100 Instructional Alarm Setter | ESU100 Integraph |
---|---|---|
Functions | 2 input: 4 Point Alarm Output (can calculate square root) |
Analog Integrated:(can calculate square root) or Pulse Integrated: Re-transmitted pulse output Instantaneous flow rate output |
Input Signal | Analog Input:1-5V DC 2 points | Analog Input:1-5V DC 1 points Or Digital Input:Non-Voltage Contact 1 point |
Output Signal | Digital Output: Semiconductor Relay Contact 4 points |
Analog Output:1-5V DC 1 point Analog Output:Semiconductor Relay Contact 1 Point |
Instruction/Display | LED Bar/Numerical Display | LED Bar/Numerical Display |
Power Supply Voltage | 85-138V AC, 170-264V, 50/60Hz or 24V DC ±10% | |
Power Consumption | 7VA(AC during usage) | 7VA(AC during usage) |
4.8W(DC during usage) | 4.8W(DC during usage) | |
Insulated Resistance | Between each terminal and other contact:More than 100MΩ / DC500V | |
Installation method | Implanted on the instrument board | |
Weight | Approx. 3kg |
