Current / Pico‐current

Scans in the horizontal direction with a bias voltage applied to the sample, detects the current that flows between probe and sample, and observes current distribution.

-
-
-

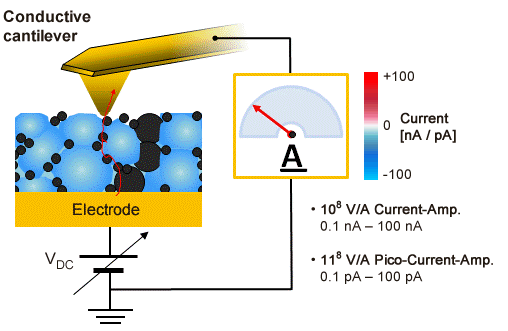

Schematic Animation of Current‐AFM Observation

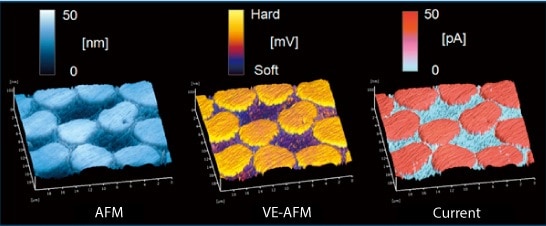

VE‐AFM and Current‐AFM: CFRP (Carbon fiber reinforced plastic)

-
