Scanning Spread Resistance Microscope(SSRM)

Local resistance distribution on the sample surface at the wide range amplifier greater than 6th order is observed by using a hard cantilever of high conductivity and measuring the micro-current at the contact position with the probe by applying a bias voltage to the sample. The practical semiconductor dopant concentration range is sufficiently covered.

-

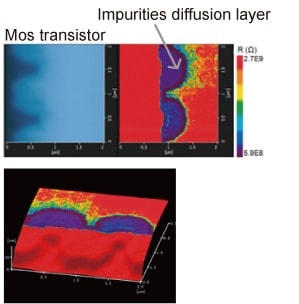

Mos transistor
-

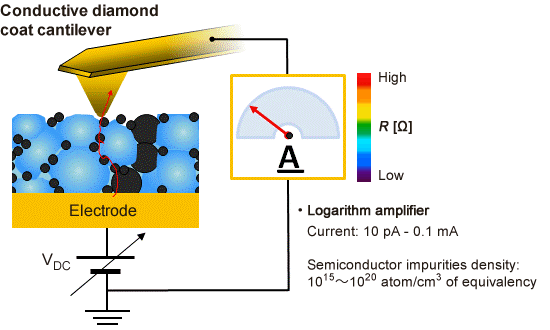

Schematic Animation of SSRM Observation

Cathode materials for Li‐ion batteries

-

The electric resistance distribution of highly conductive Al foil and various cathode materials (micro‐cathode active materials, a conductive assistant, and resin binders) on both sides are clearly observed in the SSRM image.
