Scanning Tunneling Microscope (STM)

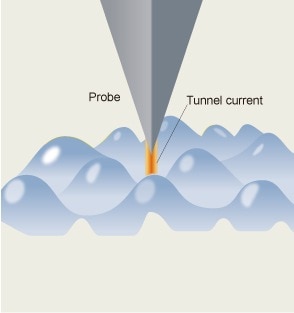

A tunnel current flowing between probe and sample is detected (controlled so that the tunnel current is fixed and sample surface is scanned) by applying a bias voltage between a metallic probe and conductive or semiconductive sample as the distance between them approaches less than several nm. Sample topography as well as its electronic state are observed.

-

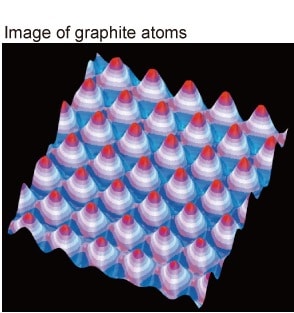

Image of graphite atoms
Scan area: 1.3 nm
