High-resolution measurement for increasing miniaturization
Superconductor devices require faster high-speed processing and higher functionality than ever. To meet those performance needs, miniaturization and high integration within the semiconductor manufacturing process are constantly growing. This requires extremely high-resolution and high-precision measurements that are difficult to achieve. The AFM5300E securely meets the needs of the semiconductor industry by enabling AFM measurement in vacuum environments, along with high-resolution electromagnetism measurements and observation of dopant distribution.
High-resolution measurements in a vacuum
Applicable products:
Capable of AFM measurement in vacuum environments. When measuring electromagnetic properties in a high-vacuum environment, this model eliminates the influence of absorbed water, atmospheric gas molecules and moisture on the surface, preventing oxidation of the sample surface and enabling high-resolution measurement that results in an understanding of physical properties that is closer to theoretical values.
When performing imaging via SPMs with vibrating cantilevers, the viscosity resistance generated by gas molecules impacts the sensitivity of force detection.
By employing Q control in vacuum environments, it is possible to perform imaging with a higher degree of sensitivity.
Actual cases of observation of nanomagnetic hexagonal lattices with magnetic force microscopes (MFM)
Observations of dopant distribution
Applicable products:
While AFM analysis of semiconductor dopant distribution has been performed with SSRM (scanning spreading resistance microscopy) and SCM (scanning capacitance microscopy) in the past, use of SNDM (scanning nonlinear dielectric microscopy) technology in vacuum environments enables low-density observation and highly precise measurement of CV property curves.

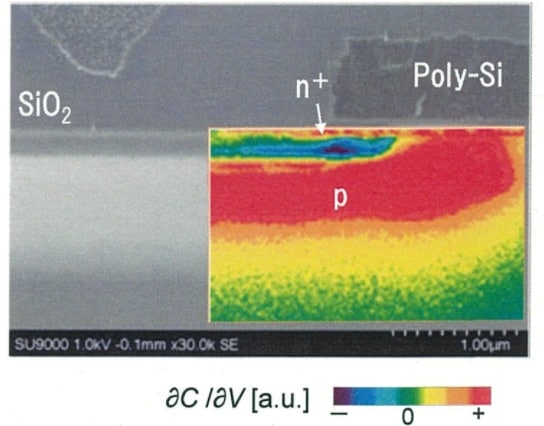

FE-SEM/SNDM observation results of SiC MOS FET
(Overlapping of SNDM images with SEM images)
Product lineup
Hitachi AFM will prove useful at any stage
By application
Automation / Ease of use
High accuracy / High resolution
- High-accuracy measurements of slanted surfaces with a steep slope
- High-accuracy measurements without damaging samples
- High-resolution measurements in a vacuum
- Stable and accurate measurements during sample heating and cooling
- High-accuracy topography measurements
- High-sensitivity MFM measurements in ambient or vacuum environments
- Humidity control / observations in liquid
Physical property measurements /
Environmental Controls
- Measurements of work functions in ambient or vacuum environments
- Observations of dopant distribution
- Quantitative measurements of elastic modulus
- Observations of structural changes in a vacuum
- Enabled true observations of topography and other physical properties
- Enabled quantitative measurements during sample heating and cooling
